An Architecture for Information
in Digital Libraries

William Y. Arms
Christophe Blanchi
Edward A. Overly
Corporation for National Research Initiatives
Reston, Virginia
{warms, cblanchi, eoverly}@cnri.reston.va.us

D-Lib Magazine, February 1997

ISSN 1082-9873

Contents


1. Background

Flexible organization of information is one of the key design challenges in any digital library. For the past year, we have been working with members of the National Digital Library Project (NDLP) at the Library of Congress to build an experimental system to organize and store library collections. This is a report on the work. In particular, we describe how a few technical building blocks are used to organize the material in collections, such as the NDLP's, and how these methods fit into a general distributed computing framework.

The technical building blocks are part of a framework that evolved as part of the Computer Science Technical Reports Project (CSTR) [1]. This framework is described in the paper, "A Framework for Distributed Digital Object Services", by Robert Kahn and Robert Wilensky (1995)[2]. The main building blocks are: "digital objects", which are used to manage digital material in a networked environment; "handles", which identify digital objects and other network resources; and "repositories", in which digital objects are stored. These concepts are amplified in "Key Concepts in the Architecture of the Digital Library", by William Y. Arms (1995) [3].

In summer 1995, after earlier experimental development, work began on the implementation of a full digital library system based on this framework. In addition to Kahn/Wilensky [2] and Arms [3], several working papers further elaborate on the design concepts. A paper by Carl Lagoze and David Ely, "Implementation Issues in an Open Architectural Framework for Digital Object Services" [4], delves into some of the repository concepts. The initial repository implementation was based on a paper by Carl Lagoze, Robert McGrath, Ed Overly and Nancy Yeager, "A Design for Inter-Operable Secure Object Stores (ISOS)" [5]. Work on the handle system, which began in 1992, is described in a series of papers that can be found on the Handle Home Page [6].

The National Digital Library Program (NDLP) at the Library of Congress is a large scale project to convert historic collections to digital form and make them widely available over the Internet. The program is described in two articles by Caroline R. Arms, "Historical Collections for the National Digital Library" [7]. The NDLP itself draws on experience gained through the earlier American Memory Program [8].

Based on this work, we have built a pilot system that demonstrates how digital objects can be used to organize complex materials, such as those found in the NDLP. The pilot was demonstrated to members of the library in July 1996. The pilot system includes the handle system for identifying digital objects, a pilot repository to store them, and two user interfaces: one designed for librarians to manage digital objects in the repository, the other for library patrons to access the materials stored in the repository. Materials from the NDLP's Coolidge Consumerism compilation have been deposited into the pilot repository. They include a variety of photographs and texts, converted to digital form. The pilot demonstrates the use of handles for identifying such material, the use of meta-objects for managing sets of digital objects, and the choice of metadata. We are now implementing an enhanced prototype system for completion in early 1997.


2. Overview of the Digital Library System

2.1 The structure of information and sets of digital objects

This section gives an overview of the concepts as background to the more detailed explanation in Section 3 and the technical information in Section 5.

The purpose of the information architecture is to represent the riches and variety of library information, using the building blocks of the digital library system. From a computing view, the digital library is built up from simple components, notably digital objects. A digital object is a way of structuring information in digital form, some of which may be metadata, and includes a unique identifier, called a handle. (Digital objects and handles are described in more detail in Section 4.) However, the information in the digital library is far from simple. A single work may have many parts, a complex internal structure, and one or more arbitrary relationships to other works. To represent the complexity of information in the digital library, several digital objects may be grouped together. This is called a set of digital objects. All digital objects have the same basic form, but the structure of a set of digital objects depends upon the information it represents.

The different types of material in a digital library, information can be divided into categories, e.g.: text with SGML mark-up, World Wide Web objects, computer programs, or digitized radio programs. Within each category, rules and conventions describe how to organize the information as sets of digital objects. For example, specific rules will describe how to represent a digitized radio program. For each category, the rules describe the digital objects that are used to represent material in the library, how each is represented, how they are grouped as a set of digital objects, the internal structure of each digital object, the associated metadata, and the conventions for naming the digital objects.

A user interface that is aware of the rules and conventions applying to certain categories of information is able to interpret the structure of the set of digital objects. Complex information can be presented without the user having any knowledge of the complexity. Since the user interface recognizes how material is represented, it can provide unsophisticated users with flexible access to rich and complicated information.

2.2 Components of the computer system

The digital library framework permits many different computer systems to coexist. The key components are shown in the figure below. They run on a variety of computer systems connected by a computer network, such as the Internet.

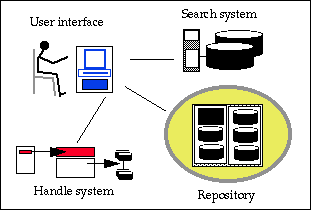

Major system components

To demonstrate this framework, we implemented a pilot system. A more comprehensive prototype will be completed early in 1997.

User interfaces
Both the pilot and the prototype have two user interfaces: one for the users of the library, the other for the librarians and system administrators who manage the collections. Each user interface is in two parts. A standard Internet browser is used for the actual interactions with the user. This can be Netscape Navigator, Microsoft's Internet Explorer, or the Grail browser developed by our colleagues at CNRI. The browser connects to client services, which provide intermediary functions between the browser and the other parts of the system. The client services allow the user to decide where to search and what to retrieve; they interpret information structured as digital objects; they negotiate terms and conditions, manage relationships between digital objects, remember the state of the interaction, and convert among the protocols used by the various parts of the system.

Repository
Repositories store and manage digital objects and other information. A large digital library may have many repositories of various types, including modern repositories, legacy databases, and Web servers. Section 4 of this report describes the pilot repository that we have implemented and enhancements planned for the prototype. The interface to this repository is called the repository access protocol (RAP). Features of RAP are explicit recognition of rights and permissions that need to be satisfied before a client can access a digital object, support for a very general range of disseminations of digital objects, and an open architecture with well defined interfaces.

Handle system
Handles are general purpose identifiers that can be used to identify Internet resources, such as digital objects, over long periods of time and to manage materials stored in any repository or database. CNRI's handle system is a computer system that provides a distributed directory service for identifiers (handles) for Internet resources. When used with the repository, the handle system receives as input a handle for a digital object and returns the identifier of the repository where the object is stored.

Search system
The design of the digital library system assumes that there will be many indexes and catalogs that can be searched to discover information before retrieving it from a repository. These indexes may be independently managed and support a wide range of protocols. The pilot system is independent of any search system; the prototype is being linked to CIIR's InQuery system, which is already in use at the Library of Congress.

2.3 An example of how these components support a user's query

To understand the function of these system components, here is an example of how they allow a user to carry out a simple query. Suppose that a user is looking for a digitized photograph showing both President Calvin Coolidge and President Herbert Hoover. The interaction could pass through the following stages.

The first stage is to search for digitized photographs that fit the required criteria. The client services provide the user's browser with a form for searching. The user fills in the form with a search query, asking for photographs of Coolidge and Hoover. The completed form is sent to the client services. The client services translate the query into the formats and protocols required by the search system. For example, the search system may use Z39.50. The client services conduct a Z39.50 session with the search system and obtain a list of the digital objects that satisfy the query. Each digital object is identified by its handle.

The next stage is for the user to select a digitized photograph to view. The client services present the user's browser with the list of digital objects found through the search system (currently as an html page with links to click). The user selects the required photograph.

The third stage is retrieval of the digitized photograph. The client services send the handle of the chosen photograph to the handle system, which returns the address of the repository. The client services pass the handle to the repository, using the RAP protocol. Several versions of the photograph may be stored in the repository as a set of digital objects, identified by the handle. The client services select one, perhaps a small thumbnail, and requests it from the repository. All RAP transactions pass through an explicit terms and conditions step. Checking the terms and conditions associated with this digital object may need negotiation between the client services and the repository, or direct interaction with the user.

Finally, the digitized photograph that was chosen is delivered from the repository, via the client services, to the user's browser and displayed on the screen.


3. The Information Architecture

3.1 Outline of the Information Architecture

The structure of information in a digital library

Interactions, such as the query described above, require that information in a digital library be organized effectively. Within the library, information is stored as basic units of digital information, e.g., a digitized map, a section of text, a Web page, a scanned photograph, etc. In digital form, each basic unit is a sequence of bits, but users often want to refer to material at a higher level of abstraction than the individual item. Common English terms, such as a "report", a "computer program", or an "opera" can refer to many items that are variants of each other. They may have different formats, minor differences of content, different usage restrictions, and so on, but for some purposes users are willing to consider them as equivalent.

The issues to be addressed in structuring information include the following.

The information architecture described here provides a general approach to organizing the material within the digital library in such a manner that computer programs can understand the structure of the material and carry out the interactions that the user wishes.

Basic principles

The information architecture is motivated by the following basic principles:

Data types, structural metadata, and meta-objects

The information architecture is based on three simple concepts: data types, structural metadata, and meta-objects. A data type describes technical properties of data, such as format, or method of processing. Structural metadata is metadata that describes the types, versions, relationships and other characteristics of digital materials. A meta-object is an object that provides references to a set of digital objects. In its simplest form, a meta-object is a list of handles of other digital objects. For example, a poetry anthology might be represented by one digital object per poem. A meta-object for the anthology is a digital object that lists all the poems. An important example of a meta-object is a digital object that lists all converted versions of a specific physical item.

As part of the pilot system, with colleagues at the Library of Congress, we developed specifications of structural metadata and meta-objects for two categories of material, scanned photographs and digitized texts. For the prototype we plan to extend these specifications to other categories of material.

In developing these rules for each category of material, certain guidelines were applied to all categories.

  1. All data is given an explicit data type

    Each item of data has an associated data type. The type specifies that the data has a certain format (e.g., the data is in the JPEG format), should be processed in a specific way (e.g., a computer program is written in the C programming language), or has a specific organization (e.g, a section of text has been marked up with SGML tags).

  2. All metadata is encoded explicitly

    All metadata that is needed to manage the collection or to provide access is coded explicitly. In particular, no semantic information is included in any name that is not encoded separately as metadata. (This can be contrasted with computer file systems, where semantic information is often embedded in file names, such as ".txt" indicating a text file.)

  3. Handles are given to individual items of intellectual property

    Whenever an item of information might be used on its own, it is given its own handle and made into a separate digital object. By having its own handle, an item may be accessed independently. This provides maximum long-term control and flexibility. For example, if a digitized text contains illustrations that could potentially be used independently, each illustration is made into a separate digital object with its own handle.

  4. Meta-objects are used to aggregate digital objects

    In a digital library, the full metadata about a single piece of information may exist in several places within a repository and also in external catalogs, indexes, or finding aids. Maintaining links to all the metadata is a huge task, and therefore the architecture does not require them. Much is gained from having a meta-object for each item that provides links to all versions of the item and to all structural metadata. External bibliographic records can then refer to the meta-object and not need to know details of a set of digital objects.

  5. Handles are used to identify items listed in meta-objects

    A meta-object contains a list. We use handles to identify the items of these lists. This provides a robust, flexible structure that allows subsequent reorganization of the collection with minimal effort.

The interpretation of these rules is often a matter of judgment, with a trade-off between a powerful representation of information, which is flexible in use but laborious to manage, and a simpler representation. Ultimately such decisions can not be dictated by the architecture or the system designers. They must be made by the curators who are knowledgeable about the material and responsible for managing it. The system provides straightforward methods for curators to decide how best to manage collections.


3.2 An Example of the Use of Meta-objects

Scanned photographs in the NDLP collections

Scanned photographs are a simple category of material that illustrates the general principles of how to use meta-objects. In the National Digital Library Program, most of the photographs to be scanned are single items, but there are numerous interesting cases to consider, including sets of photographs, and large photographs and posters that are scanned in sections.

With colleagues from the Library of Congress, we have developed guidelines for representing each scanned photograph as a set of digital objects linked through a meta-object.

Digital objects for a scanned photograph

When a typical photograph is scanned, three or more versions are produced. In NDLP terminology, they are called a low resolution "thumbnail", an intermediate resolution "access" image, and a high resolution "reference" image. Separate digital objects are created for each individual version. They each contain metadata specific to the version and the data bits for the image. To describe the photograph and its digitized versions, a meta-object is created. It contains metadata that is common to all versions of the photograph and handles for the three separate versions. Thus the scanned photograph is represented by a set of four digital objects.

Digital objects for individual versions
The digital object for each individual version of a scanned photograph has the following information:

Meta-object
The digital object for the meta-object has the following information:

The usual manner of access to the photograph is to begin with the meta-object and from there to select one of the individual versions. However, to permit a user to go directly to a specific version, some information is duplicated across objects. In particular, the rights and permissions are an integral part of every digital object.

Handles for scanned photographs

At a early stage of processing a collection, the NDLP's procedure is to give a control identifier to each item that is digitized, converted, or otherwise prepared for the library. For example, a scanned image of a photograph from the Coolidge Consumerism compilation has the identifier: 3a16116r.jpg.

This control identifier is an example of a semantic name. The form of the identifier conveys information about the item. For example, "r.jpg" indicates an image intended for reference, in the jpeg format. This is convenient for processing, but, for long term identification, semantic names are fraught with danger and violate one of the guidelines given above. Therefore, in the digital library system, we encode such semantic information explicitly as metadata, which is stored in digital objects, and replace the control identifiers by handles, which provide a unique, persistent, location independent name for each item. An example of a handle is:

This particular example is the handle of the meta-object that lists the various versions of the original object. The following terminology is used in describing handles:

"loc.ndlp.amrlp" is the naming authority
"3a16116" is a locally unique string

For convenience in processing, the scanned versions of the same photograph are distinguished by sequence numbers. For example, the two following handles refer to different versions of the same photograph. (For example, the first handle might refer to the reference version, the second to a small thumbnail.)

Using the string "3a16116" from the control identifier as part of the handle is for mnemonic convenience only. Any string could be used and totally different strings could be used for the separate versions. However, this convention is convenient for managing the collection. The following diagram shows the use of the meta-object:

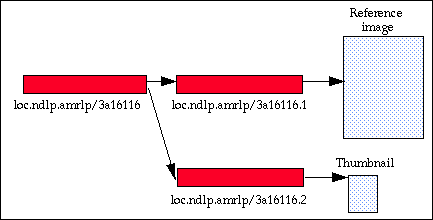

A meta-object used to identify two version of a scanned photograph

The handle to the meta-object, "loc.ndlp.amrlp/3a16116", permanently identifies the set of scanned images made from this single photograph. The scanned photograph can be referenced by this handle, for example, in MARC records, shelf lists, external bibliographies, and any other place where a name is needed that can be relied on for the long term.

Depositing a scanned photograph

To deposit a scanned photograph in the repository is partly a professional task carried out by library staff and partly automated. The beginning point is a set of files received from the contractor doing the scanning, each with a control identifier. The following tasks require professional attention:

The actual creation and depositing of the set of digital objects in the repository and the registration of handles in the handle system is carried out by a computer program. The following operations are carried out automatically:

Access to a scanned photograph

Deposit of a set of digital objects is one basic operation on the set of digital objects that represent a single scanned photograph. Other basic operations concern access. These are discussed in more detail in the later section on repositories. For the scanned photograph category, the access conventions are:


4. The Next Steps

Our work with the NDLP concentrates on digital library materials that are converted from physical formats, such as photographs and printed articles. The pilot system demonstrates how the framework can be used to represent several categories of material and the prototype will extend to all categories in the NDLP collections.

The architecture, however, is designed to be more general. Digital objects can store static or dynamic information; they can be archived for perpetuity or have a transitory existence. Access to a digital object in a repository may require the execution of a program of arbitrary complexity. Repositories, themselves, may be within mobile agents. In our future work, we aim to extend the richness and variety of information in the digital library architecture by continuing to build upon the simple building blocks of digital objects, handles, and repositories.


Continue to Section 5. Technical Information
Go to Section 6. References
Go to Section 7. Acknowledgments


Approved for release, February 14, 1997.
